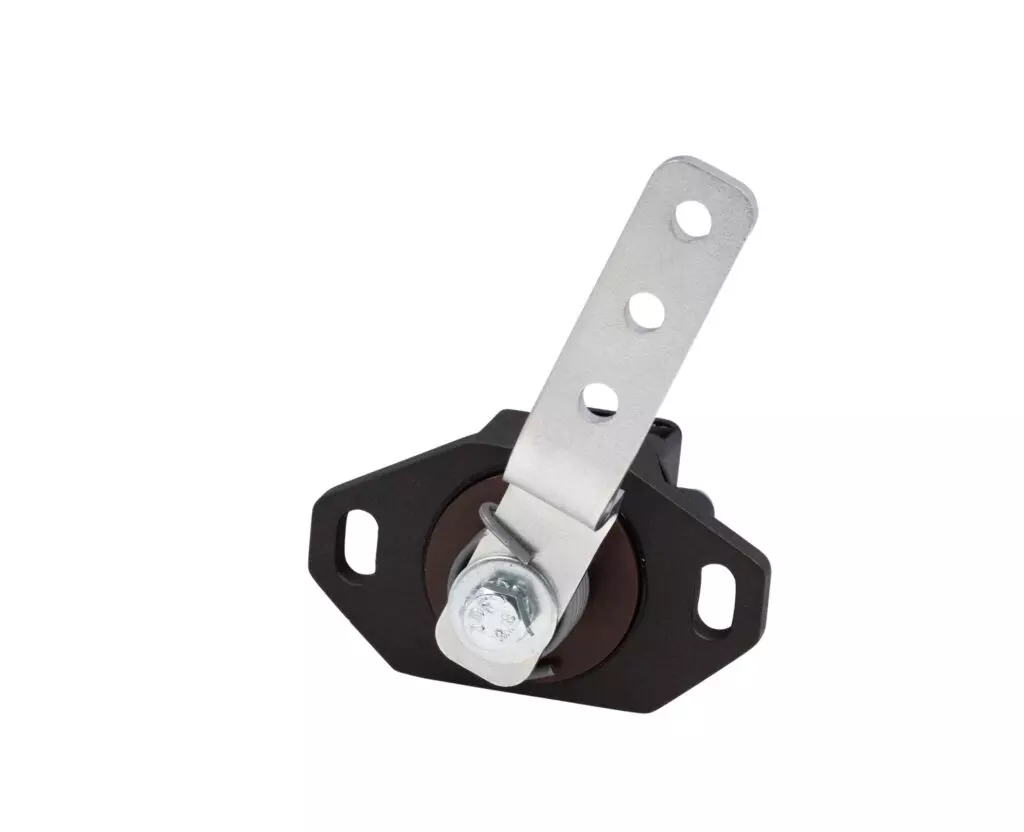

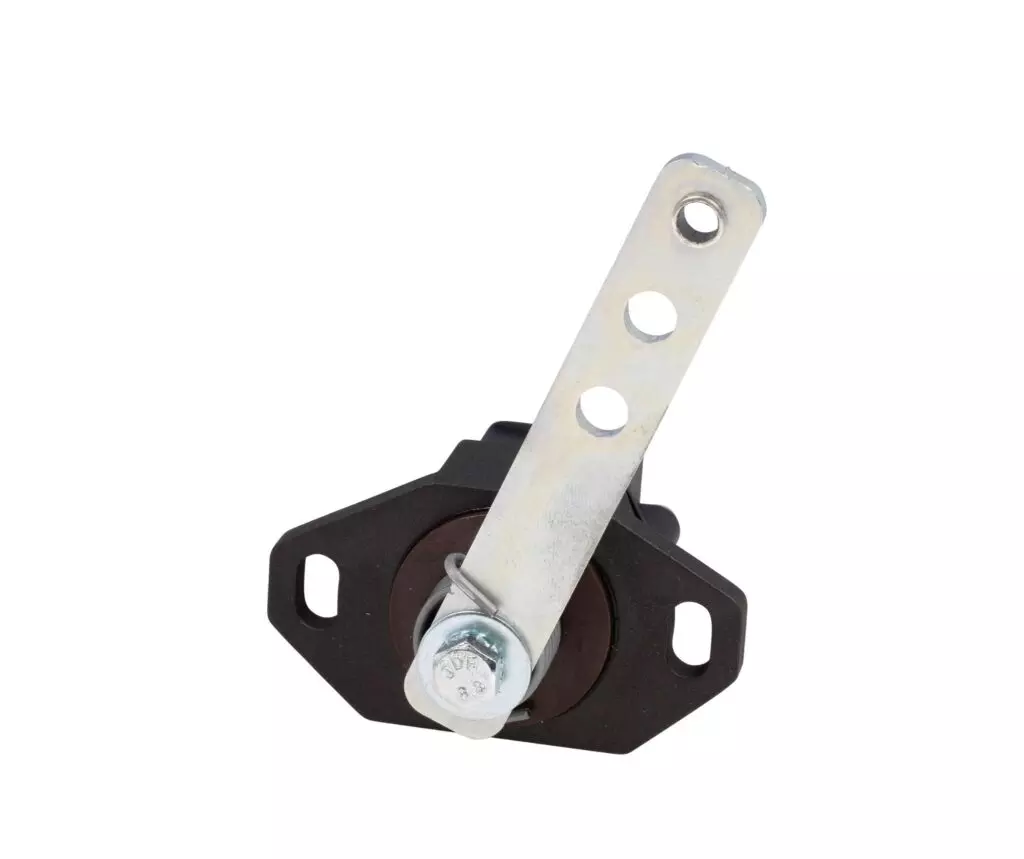

At Cablecraft Australia, we understand that reliability and performance are non-negotiable when it comes to electronic control systems in demanding industrial, automotive, and off-highway applications. That’s why we proudly supply the 974 000 Series Electronic Throttle Position Sensor—a rugged, high-precision solution designed for optimal performance in harsh environments.
Built for Tough Australian Conditions
The 974 000 Series sensor is engineered for durability, precision, and adaptability. Housed in die-cast aluminium, this sensor is built to withstand high levels of mechanical stress, extreme temperatures, and environmental exposure. With IP69K-rated protection, it offers exceptional resistance to water and dust ingress—making it ideal for use in mining, heavy machinery, agriculture, and off-road vehicle applications.
Key Features:
- One return spring for consistent, reliable return motion
- Travel angle of 42° providing accurate and responsive feedback
- Operating temperature range: -40°C to +85°C
- Storage temperature: -40°C to +125°C
- AMP 6-pin connector for secure electrical connection
Whether you’re operating in the outback or on the job site, this sensor is built to go the distance.
Wide Range of Applications
Designed for versatility, the 974 000 Series Electronic Throttle Position Sensor is suited to a broad range of applications across the industrial and automotive sectors. Common uses include drive-by-wire throttle systems, hydraulic control levers, joystick integration, and pedal control systems in everything from earthmoving equipment and agricultural vehicles to construction machinery and custom motorsport applications. Its robust build and flexible signal outputs make it a go-to solution for OEMs and engineers looking to improve accuracy, control, and safety in electronic actuation systems.
Standards Compliance
For industries where safety and compliance are paramount, the 974 000 Series is certified to meet multiple international standards:
- FMVSS 124 & 302 (ECE R118)
- 72/245/EEC
- ECE R10.06
- ISO 26262 Part 5 – ASIL C (SEooC) (only for APS Dual 5V and APS CAN models)
These approvals ensure that your control systems are not only robust but also meet the regulatory requirements of OEM and Tier 1 manufacturers.
Flexible Output Options
One of the standout features of the 974 000 Series is its factory-programmable output—customised to meet your system’s specific requirements. Available output formats include:
- Analogue
- PWM (Pulse Width Modulation)
- IVS (Idle Validation Switch)
- Current
- CAN J1939
- CANopen
This flexibility allows seamless integration with modern vehicle and equipment electronics.
Customisable to Your Application
Cablecraft Australia supports local engineers, technicians, and OEMs with tailored solutions. The 974 000 Series can be configured with:
- A selection of lever types
- Clockwise or counter-clockwise rotation senses
- Connector kits or custom wiring harnesses
This ensures optimal fitment and performance for a wide range of mechanical and electronic pedal systems.
Get in Touch
Cablecraft Australia is your trusted source for high-performance electronic throttle sensors, pedal systems, and spherical rod ends. For technical assistance, custom configurations, or a quote, contact us today or visit our Facebook page for the latest updates.
