Built for Precision and Durability
At Cablecraft Australia, we understand that control, reliability, and performance are non-negotiable in industrial, automotive, and off-highway applications. That’s why we proudly offer the 976 000 Series Electronic Hand Throttle – an advanced, rugged solution engineered to deliver precise throttle control even in the harshest environments.
Engineered for High Performance

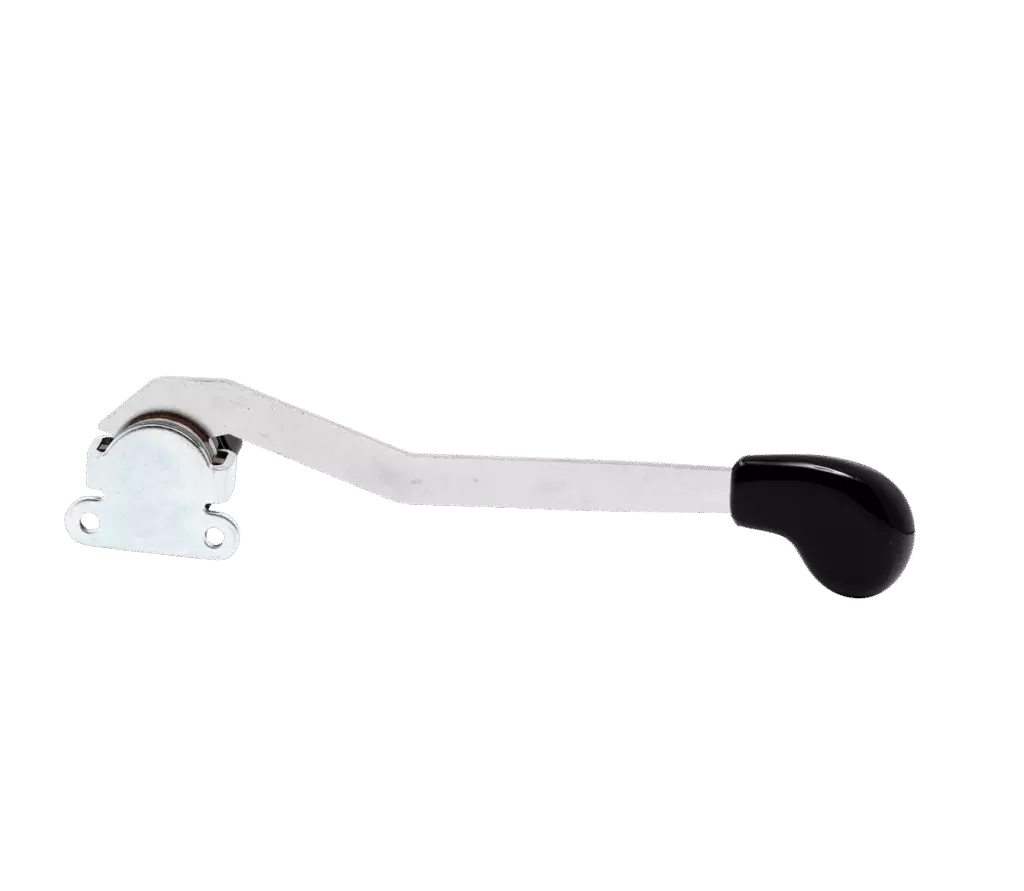

The 976 000 Series Electronic Hand Throttle stands out with its robust construction and flexible functionality, making it an ideal solution for manufacturers and engineers who demand quality and performance. Designed with a 45° travel angle, it offers smooth, progressive control for a wide range of applications – from construction equipment to heavy-duty vehicles and industrial machinery.
Built to Withstand the Elements
This throttle unit is rated IP69K, ensuring maximum resistance against water, mud, dust, and pressure washing – perfect for harsh outdoor and industrial conditions. Operating reliably in temperatures from -40°C to +85°C, and storing safely down to -40°C and up to +125°C, the 976 000 series is made for extreme environments.



Compliance with Global Standards
Reliability and safety are at the core of this design. The 976 000 Series complies with key international standards, including:
- FMVSS 124 – Ensuring proper return to idle performance
- FMVSS 302 / ECE R118 – Fire resistance standards for automotive interiors
- 72/245/EEC & ECE R10.06 – Electromagnetic compatibility
- ISO 26262 Part 5 – ASIL C (SEooC) – For APS Dual 5V and CAN sensor variants
This makes the throttle a dependable component for use in regulated vehicle and machinery systems worldwide.
Applications
The 976 000 Series Electronic Hand Throttle is ideal for a wide range of commercial, industrial, and specialty vehicle applications. Common use cases include:
- Construction and agricultural machinery – such as excavators, tractors, loaders, and telehandlers
- Mining and material handling equipment – where robust throttle control is essential
- Municipal and utility vehicles – including road sweepers, snow ploughs, and refuse trucks
- Specialist vehicles and retrofit projects – including marine, defence, and rail applications
- Industrial engine and generator control systems – where precision and programmable output are required
Its rugged construction and configurability make it especially suited to high-vibration, high-dirt, and high-demand environments.
Versatile Output and Integration Options
Whether you’re designing a new system or upgrading existing equipment, the output signal is fully programmable at the factory to match your specifications. Output options include:
- Analogue
- PWM (Pulse Width Modulation)
- IVS (Idle Validation Switch)
- Current-based output
- CAN J1939
- CANopen
This flexibility allows for seamless integration into a wide range of electronic control systems.
Customisation to Suit Your Needs
The 976 000 Series is built to adapt to your unique application:

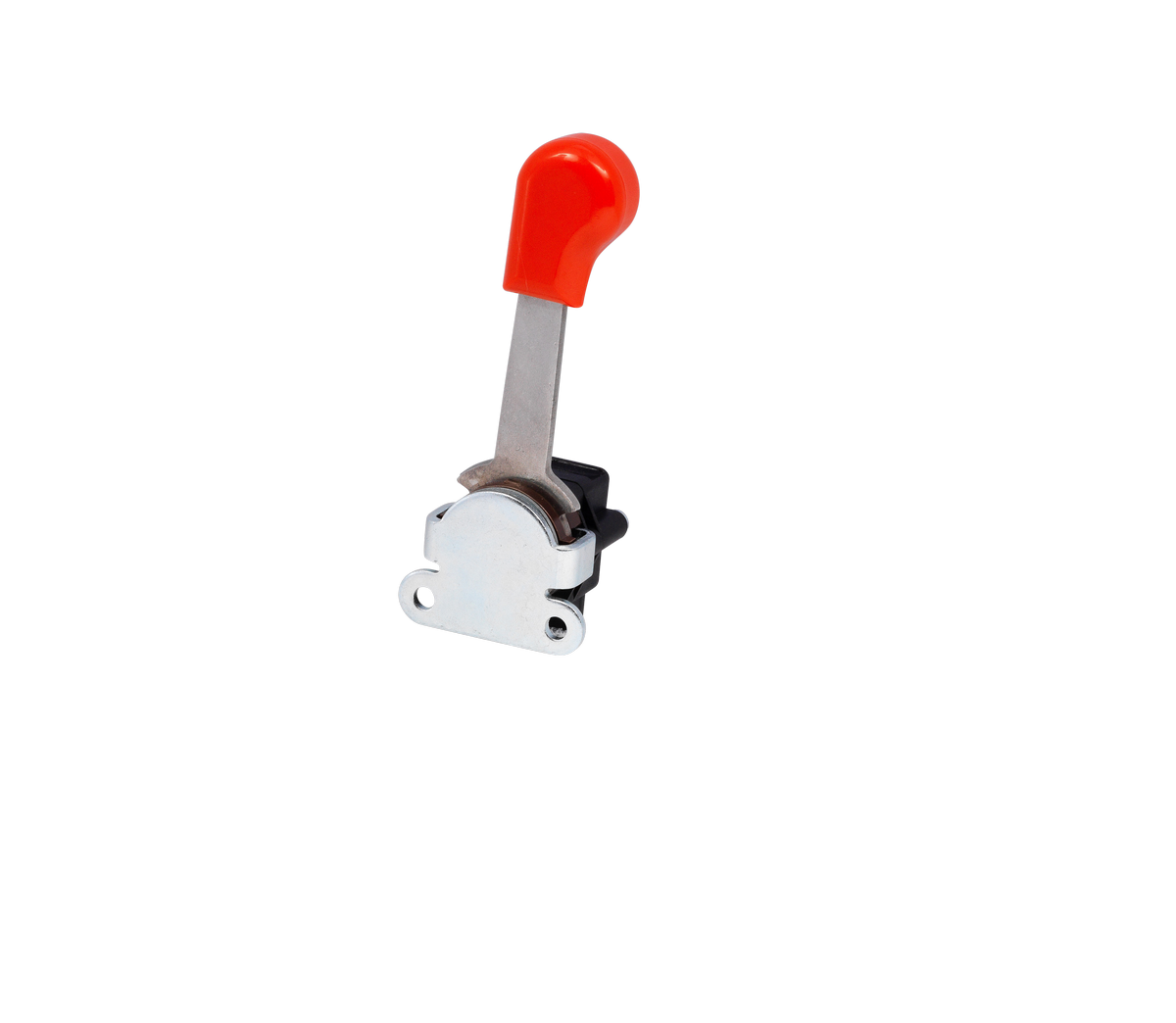

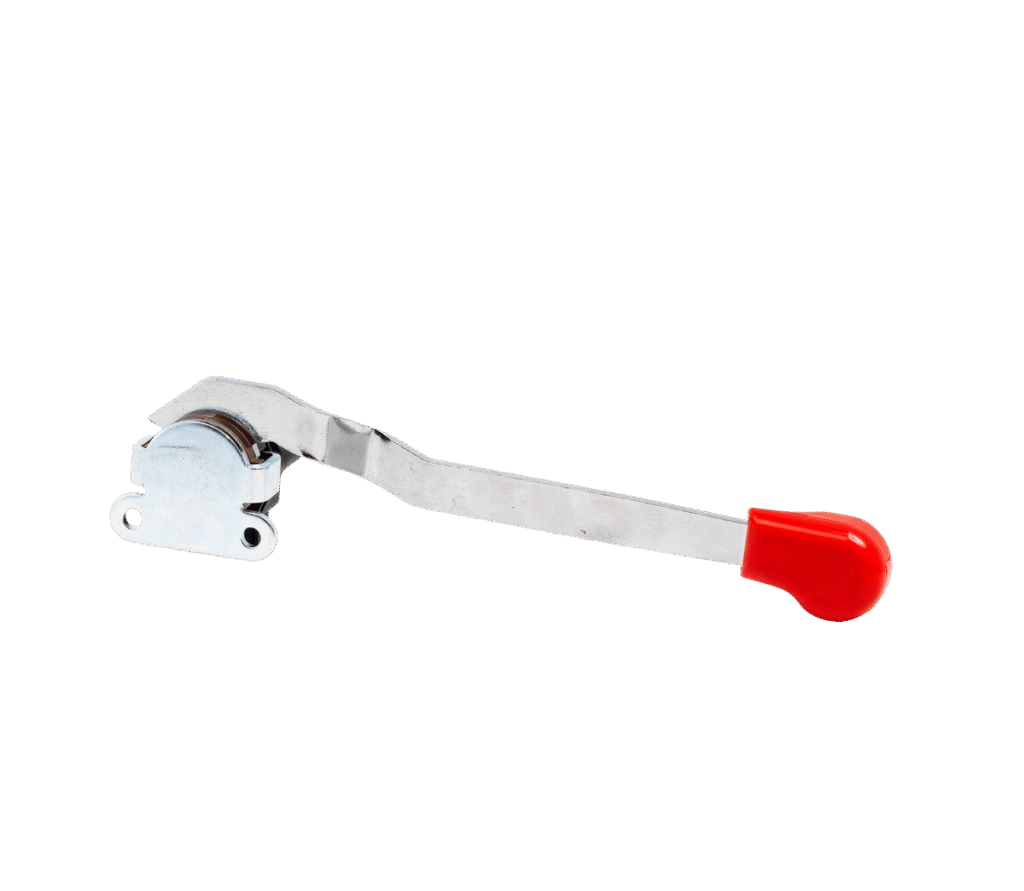

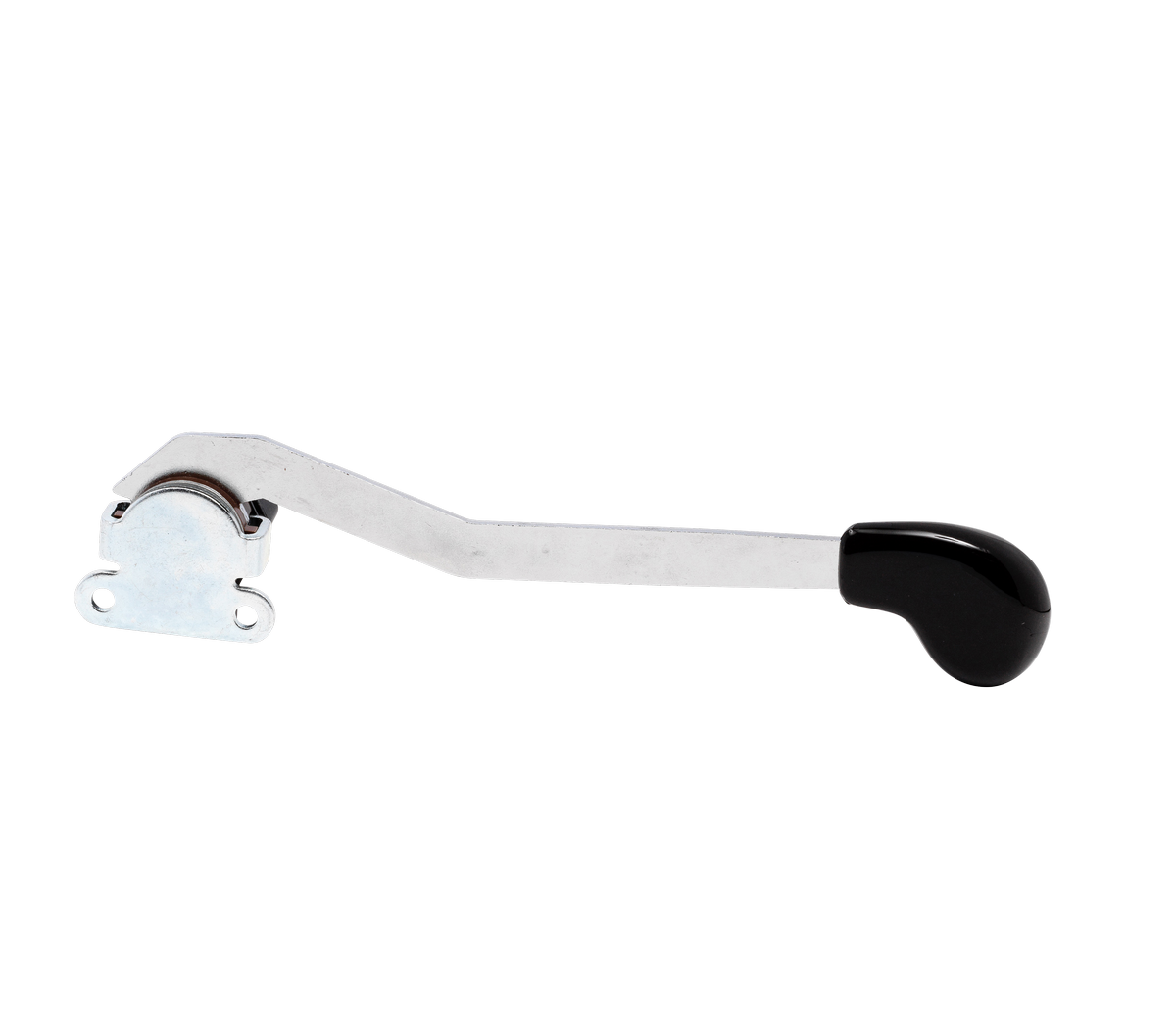

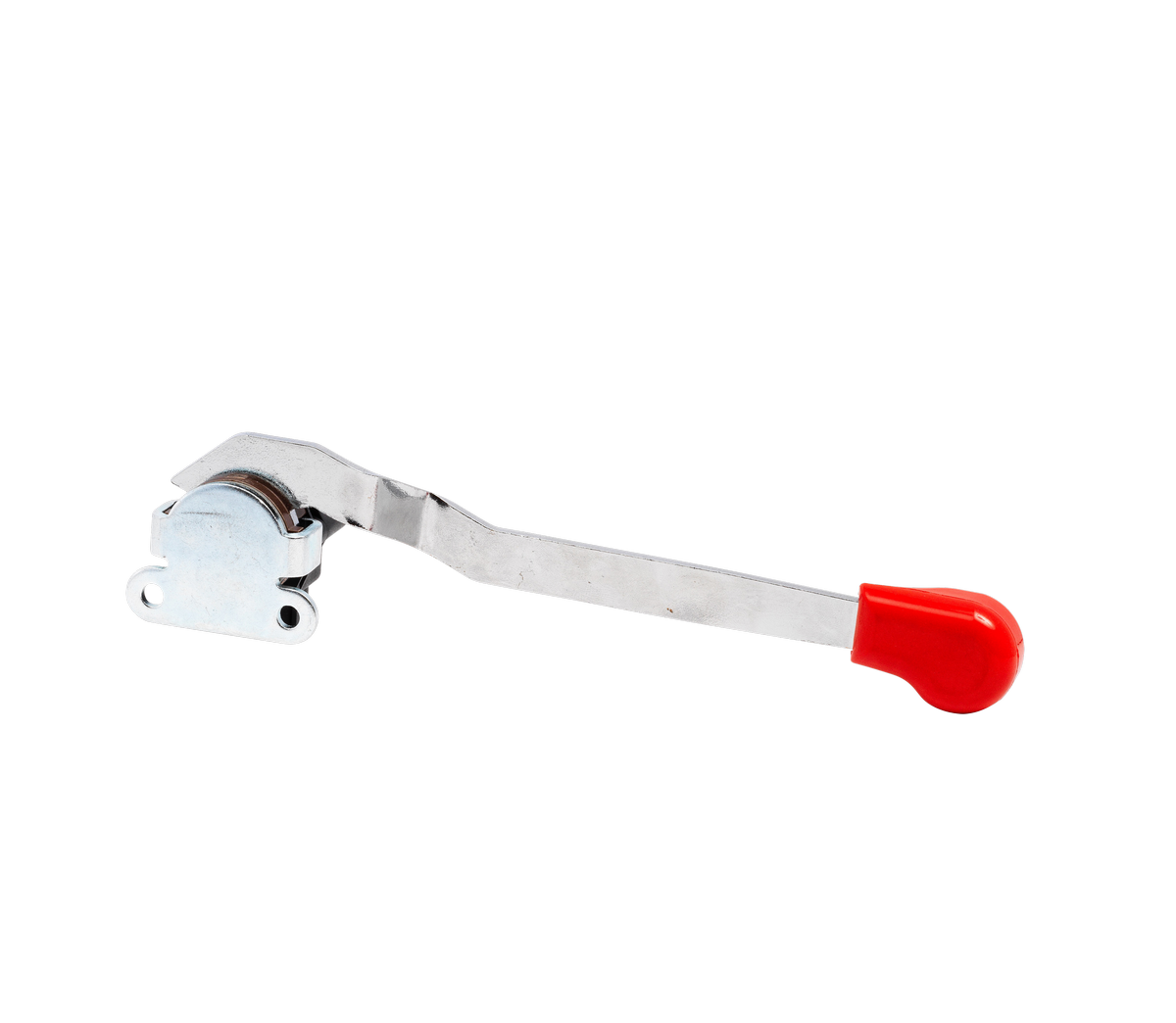

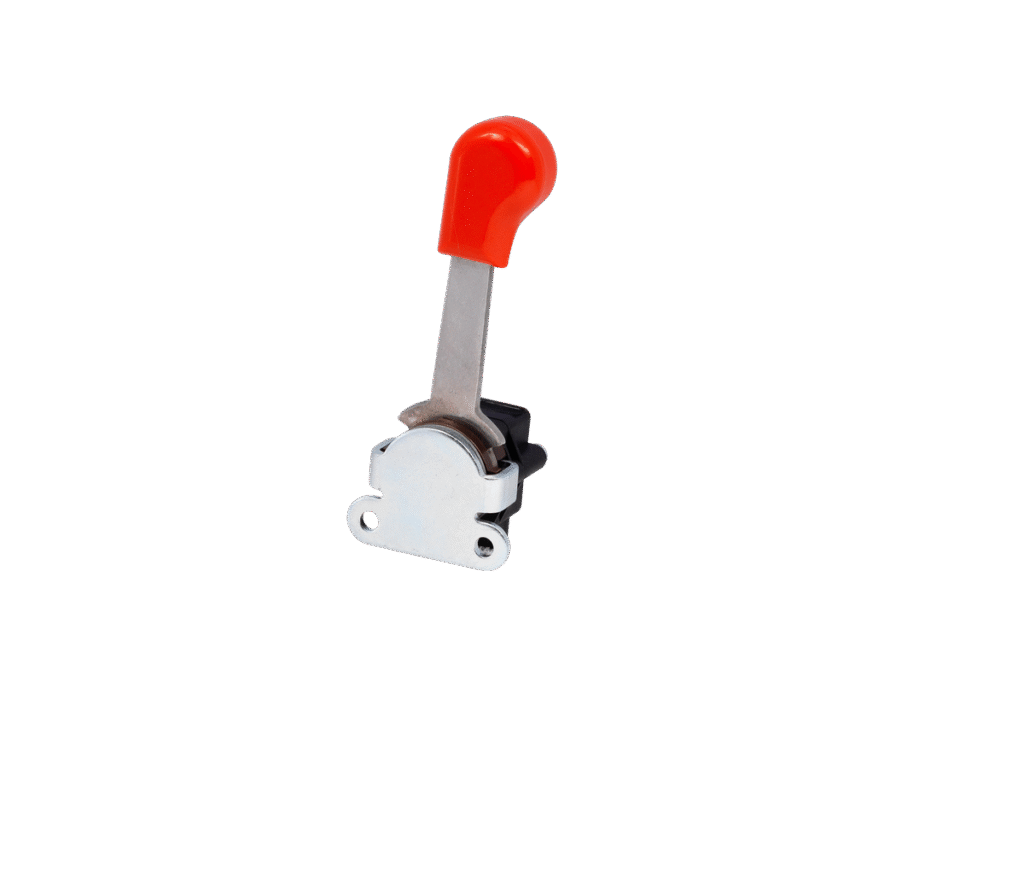

- Choice of standard or custom-designed levers
- Multiple knob styles available
- Optional connector kits or customised wire harnesses
- Support for CAN J1939 protocol integration
This level of customisation ensures the solution fits both your mechanical and electronic requirements.
Ready to Upgrade Your Throttle Control?
If you’re looking for a rugged, standards-compliant, and highly configurable electronic hand throttle for your machinery or fleet, the 976 000 Series delivers.
