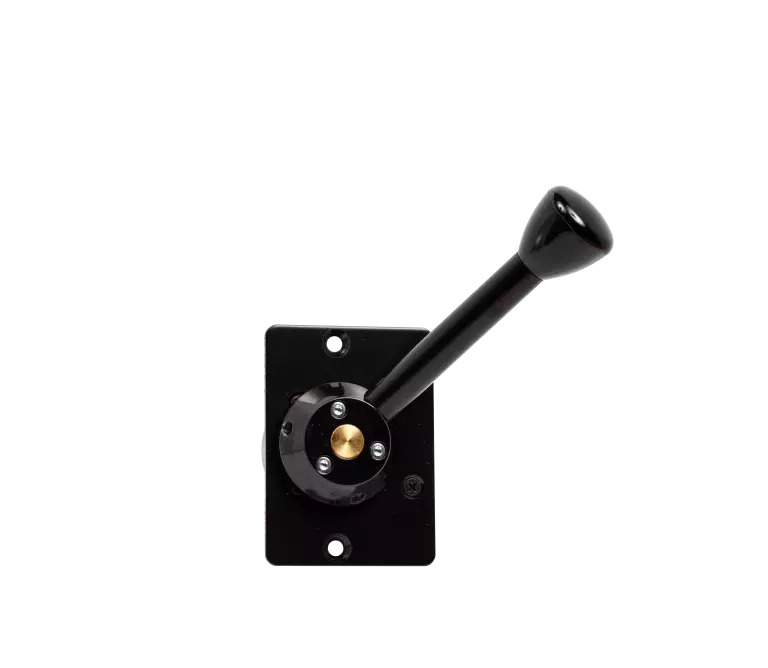

In the demanding world of industrial, transport, and off-highway vehicle applications, precision, durability, and control are non-negotiable. The 975 000 Series Electronic Hand Throttle, available through Cablecraft Australia, delivers on all fronts—engineered for performance, built for reliability, and designed to adapt to your system requirements.
Built for Harsh Conditions
Manufactured to meet rigorous environmental standards, the 975 000 Series is built to thrive in Australia’s toughest conditions—from scorching summer days to frosty mornings in remote job sites. With a 90° travel angle and IP69K-rated sealing, this throttle is impervious to water, dust, and contaminants. It withstands a wide operating temperature range of -40°C to +85°C, with storage tolerances up to +125°C, making it ideal for extreme-duty applications in mining, construction, transport and agriculture.
Versatile Connectivity and Signal Output
Fitted with a 6-pin AMP connector, the 975 000 Series supports a wide array of factory-configurable signal outputs. Whether you’re integrating with existing systems or building a custom solution, this throttle accommodates:
- Analogue
- PWM (Pulse Width Modulation)
- IVS (Idle Validation Switch)
- Current Output
- CAN J1939
- CANopen
These options enable seamless communication with a broad spectrum of control systems, delivering real-time precision feedback and control.
Industry-Leading Compliance & Safety
Complying with multiple global automotive and machinery standards, the 975 000 Series provides assured performance:
- FMVSS 124 & FMVSS 302 (ECE R118)
- 72/245/EEC
- ECE R10.06 compliance (for specific sensor configurations)
- ISO 26262 Part 5 – ASIL C (SEooC) for applications using APS Dual 5V or APS CAN sensors
- E1 Number 03 5754 certification
These certifications give OEMs and system integrators peace of mind that the throttle meets the highest safety and electromagnetic compatibility standards.
Applications Across Industries
The 975 000 Series Electronic Hand Throttle is ideal for a wide variety of applications where manual engine or motor control is required. These include agricultural machinery, mining and earthmoving equipment, on- and off-road specialty vehicles, construction equipment, forestry and material handling vehicles, as well as stationary industrial engines. Its robust design and configurable output make it an excellent choice for OEMs and retrofit markets where durability and flexibility are critical.
Customisation Options for Specific Needs
Designed with flexibility in mind, the 975 000 Series can be tailored to match your operational and ergonomic preferences. Available customisation options include:
- Multiple lever positions

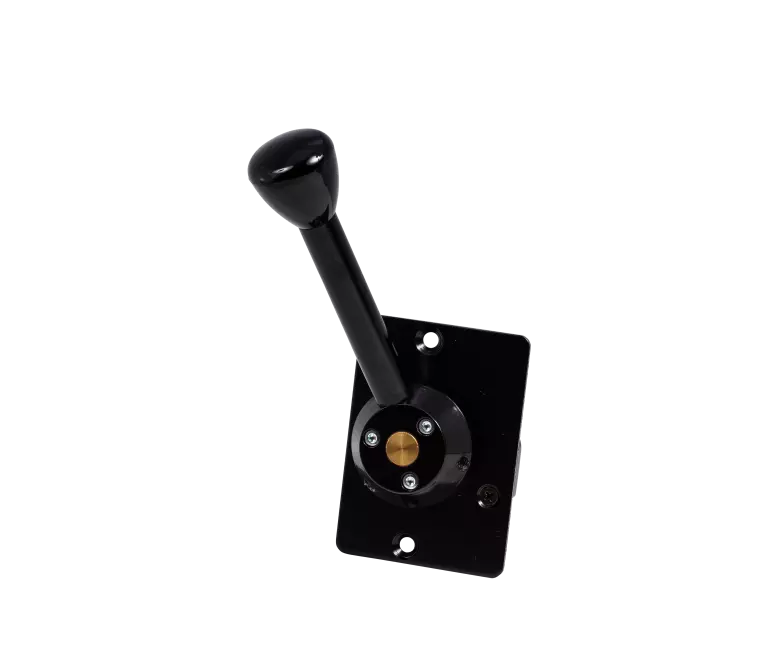

- Inclined lever configurations
- Connector kit or bespoke wire harness
- CAN J1939 integration
Whether you’re engineering a new machine or upgrading legacy systems, Cablecraft Australia can deliver a hand throttle solution configured to your specifications.
Why Choose Cablecraft Australia?
With a long-standing reputation in mechanical and electronic control systems, Cablecraft Australia is a trusted supplier to industries across Australia and New Zealand. Our team provides technical support, fast local delivery, and custom solutions that meet the demands of professionals in the field.
Need a hand throttle that performs under pressure?
Contact Cablecraft Australia today or visit our Facebook page to discuss the 975 000 Series and explore our full range of electronic control products.
