Optimising Performance with the Angular Hall Effect Position Sensor 211 000 Series
For industries requiring precision, durability, and adaptability in position sensing, the Angular Hall Effect Position Sensor 211 000 Series delivers a superior solution. Designed to withstand extreme conditions while providing highly customisable output configurations, this sensor is an excellent choice for automotive, industrial, and motor sport applications.
Key Features and Benefits
Unparalleled Durability
- Rated for IP69K water and dust ingress protection, ensuring resistance against high-pressure cleaning and harsh environments.
- Reliable performance in extreme temperatures, with an operating range from -40°C to +85°C and a storage temperature range up to +125°C.
- Robust AMP – 6-pin connector for secure and stable electrical connections.
Compliance with Industry Standards
The 211 000 Series meets stringent industry standards, ensuring reliability and safety in various applications:
- FMVSS 302 (ECE R118) – Flammability standard for vehicle interior components.
- 72/245/EEC & ECE R10.06 – Electromagnetic compatibility regulations.
- ISO 26262 Part 5 – ASIL C (SEooC) – Automotive safety integrity compliance for functional safety.
Versatile and Customisable Output Signals
The factory-programmable output values allow seamless integration into different systems, with multiple output options:
- Analogue Output for straightforward signal transmission.
- PWM (Pulse Width Modulation) for precise control.
- IVS (Idle Validation Switch) for enhanced functionality.
- CAN J1939 for advanced vehicle networking and diagnostics.
Flexible Mounting and Installation Options
To cater to a variety of applications, the 211 000 Series offers:

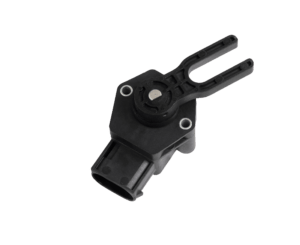

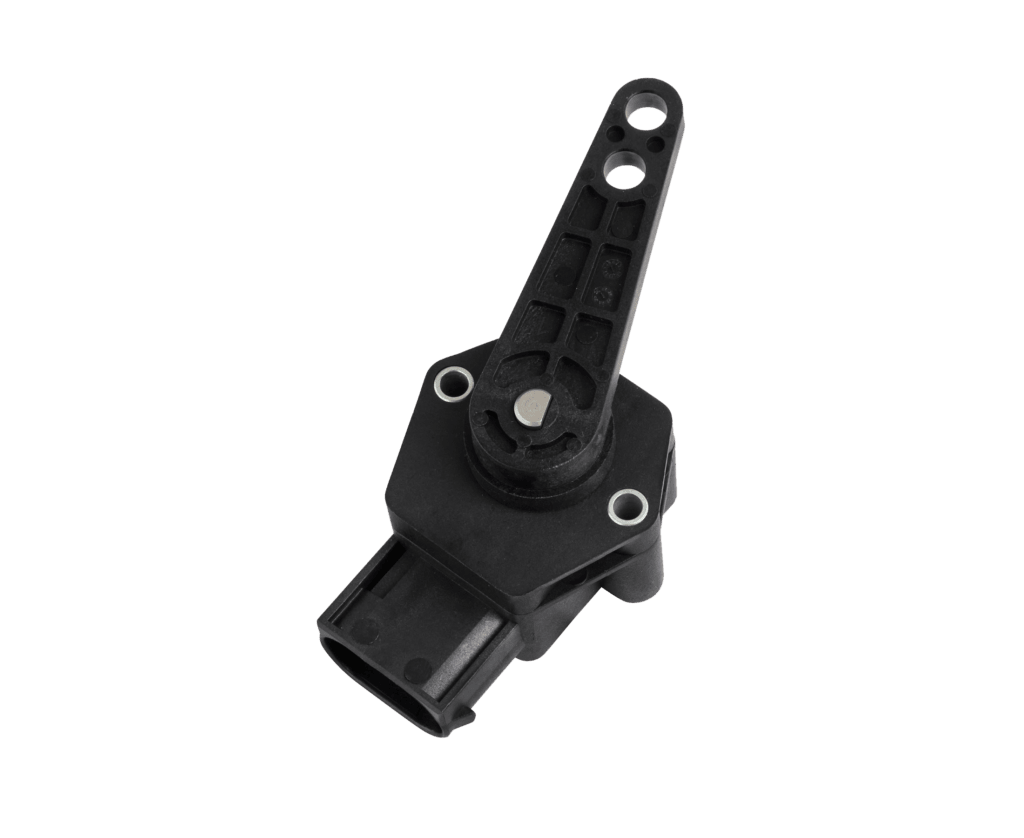

- Lever or fork mounting options to suit different mechanical setups.
- Customisable programmable travel angle up to 165°, adapting to specific motion requirements.
- Connector kit or custom wire harness to fit unique system specifications.
Applications
The Angular Hall Effect Position Sensor 211 000 Series is widely used in demanding applications that require precise motion control and position sensing. It is ideal for automotive throttle and brake systems, industrial machinery, off-highway and heavy-duty vehicles, and motorsport applications where real-time feedback and accuracy are critical. Its robust design makes it particularly suitable for harsh environments, ensuring optimal performance in both mobile and stationary systems.
Why Choose the Angular Hall Effect Position Sensor 211 000 Series?
- Highly durable and weather-resistant – ensuring longevity in tough environments.
- Wide-ranging industry compliance – meeting automotive and industrial safety standards.
- Adaptable signal output options – making integration seamless for various applications.
- Customisable configurations – allowing precise adjustments to suit specific needs.
For businesses looking to enhance the accuracy and reliability of their control systems, the 211 000 Series Angular Hall Effect Position Sensor is an industry-leading choice.
Contact Cablecraft Australia today to explore how this sensor can optimise your operations.
