In Australian motorsport, selecting the right rod ends for your race car is crucial for maximising performance, safety, and durability. Whether you’re building a drag car, a circuit racer, or an off-road beast, the right rod end can make all the difference in handling, reliability, and longevity. This guide will help you understand the key factors to consider when choosing rod ends tailored to your specific racing application.
Key Factors to Consider When Choosing Precision Rod Ends
1. Material Selection: Chrome Moly
The material composition of a rod end significantly impacts its strength, fatigue resistance, and corrosion durability.
Chrome Moly Steel (4135)
- High tensile strength and exceptional fatigue resistance.
- Ideal for high-stress applications like drag racing, circuit racing, and sprint cars.
- Heat-treated for enhanced strength-to-weight ratio, making it the preferred choice for performance applications.
- Lower susceptibility to elongation under extreme loads compared to stainless steel.
2. Load Ratings & Size Compatibility
Understanding load ratings ensures you choose a rod end that can handle the stresses of racing.
- RADIAL LOAD – A load applied normal to the bearing bore axis.
- AXIAL LOAD – A load applied along the bearing bore axis.
- STATIC RADIAL LIMIT LOAD – That static load required to produce a specified permanent self in the bearing structure. It will vary for a given size as a function of configuration. It may also be pin limited, or it may be limited as a function of body restraints, as in the case of a rod end bearing.
- STATIC RADIAL ULTIMATE LOAD – That load that can be applied to a bearing without fracturing the ball, race or rod end eye. The ultimate load rating is usually but not always 1.5 times the limited load.
- STATIC AXIAL LIMIT LOAD – That load that can be applied to a bearing to produce a specified permanent set in th bearing surface,
- STATIC AXIAL ULTIMATE LOAD – That load that can be applied to a bearing without separating the ball from the race. The ultimate load rating is usually but not always 1.5 times the limit load.
- AXIAL PROOF LOAD – That axial load that can be applied to a mounted spherical bearing without impairing the integrity mounting or bearing performance. It is always less than the static limit load.
- OSCILLATING RADIAL LOAD – A unidirectional load producing a specified maximum amount of wear when the bearing is oscillated at a specific frequency and amplitude.
3. Lining Types: PTFE-Lined vs. Unlined Bearings
Rod ends come with different bearing linings that affect performance, articulation, and maintenance.
PTFE-Lined Rod Ends:
- Self-lubricating, reducing friction and wear over time.
- Ideal for high-performance race cars where minimal maintenance is preferred.
- Provides smoother articulation, reducing unwanted play in the suspension or steering.
- Preferred for drag racing control arms and four-link suspensions where precision is critical.
Unlined Rod Ends:
- Require regular lubrication but offer higher load capacity.
- Suitable for heavy-duty applications where extreme loads are applied intermittently.
- Used in drag racing and off-road conditions where sheer strength is prioritised over convenience.
- Available with protective boots to shield against dirt and debris contamination.
Choosing the Right Standard Rod Ends for Different Racing Disciplines
Circuit Racing (Supercars, Time Attack, Touring Cars)
- High-speed cornering demands PTFE-lined chrome moly rod ends for precision and durability.
- Low-friction articulation ensures smooth steering and predictable handling.
- High misalignment rod ends (with up to 30-degree articulation) allow for full suspension travel without binding.
Drag Racing
- Requires high-load-rated chrome moly rod ends to withstand extreme acceleration forces.
- Static load ratings of at least 30,000+ lbs recommended for high-horsepower applications.
- Standard lubrication is acceptable due to the short bursts of usage per run.
- Overbuilt rod ends with extra reinforcement prevent failures under sudden torque.
Look for heat-treated, aircraft-grade materials to handle repetitive stress cycles without deformation.
Off-Road & Endurance Racing (Finke Desert Race, Rally, Baja 1000)
- Chrome moly rod ends are ideal for harsh environments where corrosion resistance is key.
- Heavy-duty unlined rod ends may be necessary for extreme impacts and rugged terrain.
- Sealed or booted rod ends help prevent dirt and debris contamination.
Installation & Maintenance Tips
- Proper Torquing: Always follow manufacturer torque specs to avoid over-tightening or premature failure.
- Regular Inspections: Check for wear, cracks, or play after every race. Even minor wear can impact alignment and handling.
- Lubrication: If using unlined rod ends, apply high-quality synthetic grease regularly to prevent premature wear.
Replace When Necessary: If you notice excessive movement, clicking sounds, or any cracking, replace rod ends immediately to prevent catastrophic failure.
Check Against Bearing Misalignment

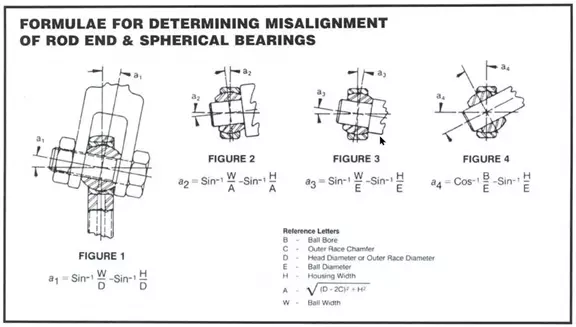

The misalignment angle of a rod or spherical bearing refers to the angle between the ball centering and the outer member centerline when the ball is misaligned to the extreme position allowed by the clevis or shaft design, as applicable.
Why Choose Cablecraft Australia for Your Racing Rod Ends?
Selecting the right rod end for your racing application is about balancing strength, weight, and longevity. For circuit racing, lightweight PTFE-lined chrome moly rod ends are ideal. Drag racers need high-load-bearing rod ends, while off-road competitors should focus on corrosion-resistant stainless-steel options.
